Large Format RGB Flash Frame – Modular RGB LED SEG Display Wall

Create a more visible trade show backdrop with dynamic RGB lighting, replaceable SEG graphics and a modular aluminum structure.

The EXPOMAX Large Format RGB Flash Frame is designed for exhibitions, retail activations, brand events and rental display programs. Its tool-free push-to-lock connection system enables fast installation, while RGB LED edge lighting adds changing colors and visual movement around the display.

Key benefits:

• Dynamic, double-sided RGB LED edge lighting

• Tool-free push-to-lock assembly

• Modular widths from 1500 to 3000 mm

• Heights of 2000, 2250 or 2500 mm

• Replaceable single- or double-sided SEG graphics

• Durable 40 × 80 mm aluminum profile

• Portable EVA wheeled hard-case packaging

• OEM/ODM support for distributors and display companies

[Request a Quote]

What Is a Large Format RGB Flash Frame?

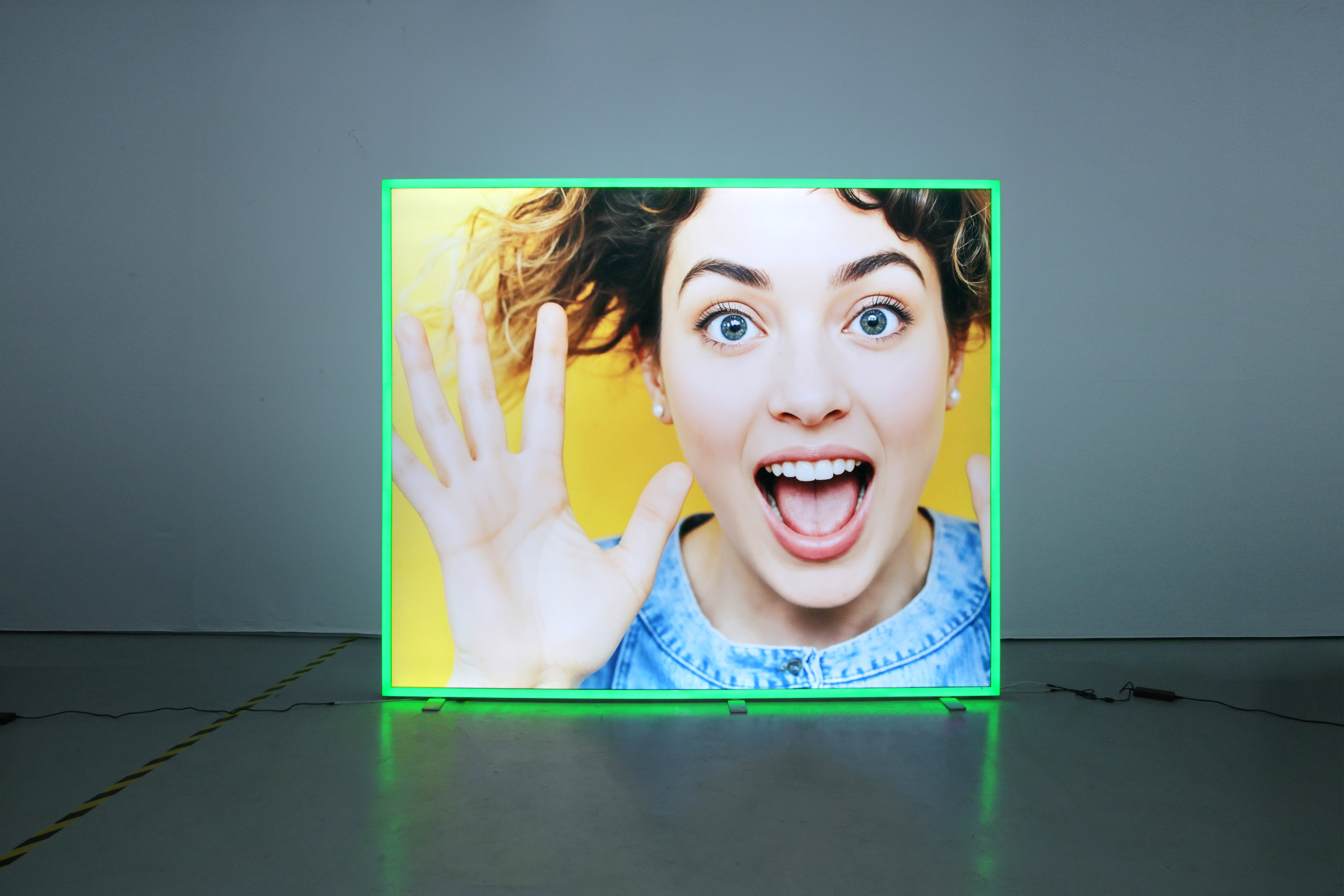

A Large Format RGB Flash Frame is a reusable RGB LED SEG display wall that combines a modular aluminum frame, color-changing edge lighting and tensioned silicone edge graphics.

Unlike a conventional static display frame, the RGB lighting can create different colors and dynamic effects around the perimeter of the display. This helps exhibitors coordinate the frame with campaign colors, event themes and branded environments.

The silicone strip sewn around each SEG fabric graphic is inserted into the frame channel, producing a smooth, tensioned display surface without visible clamps. Graphics can be removed and replaced when the campaign changes, allowing the same hardware to be reused across multiple events.

Why Choose the EXPOMAX Large Format RGB Flash Frame?

Tool-Free Push-to-Lock Assembly

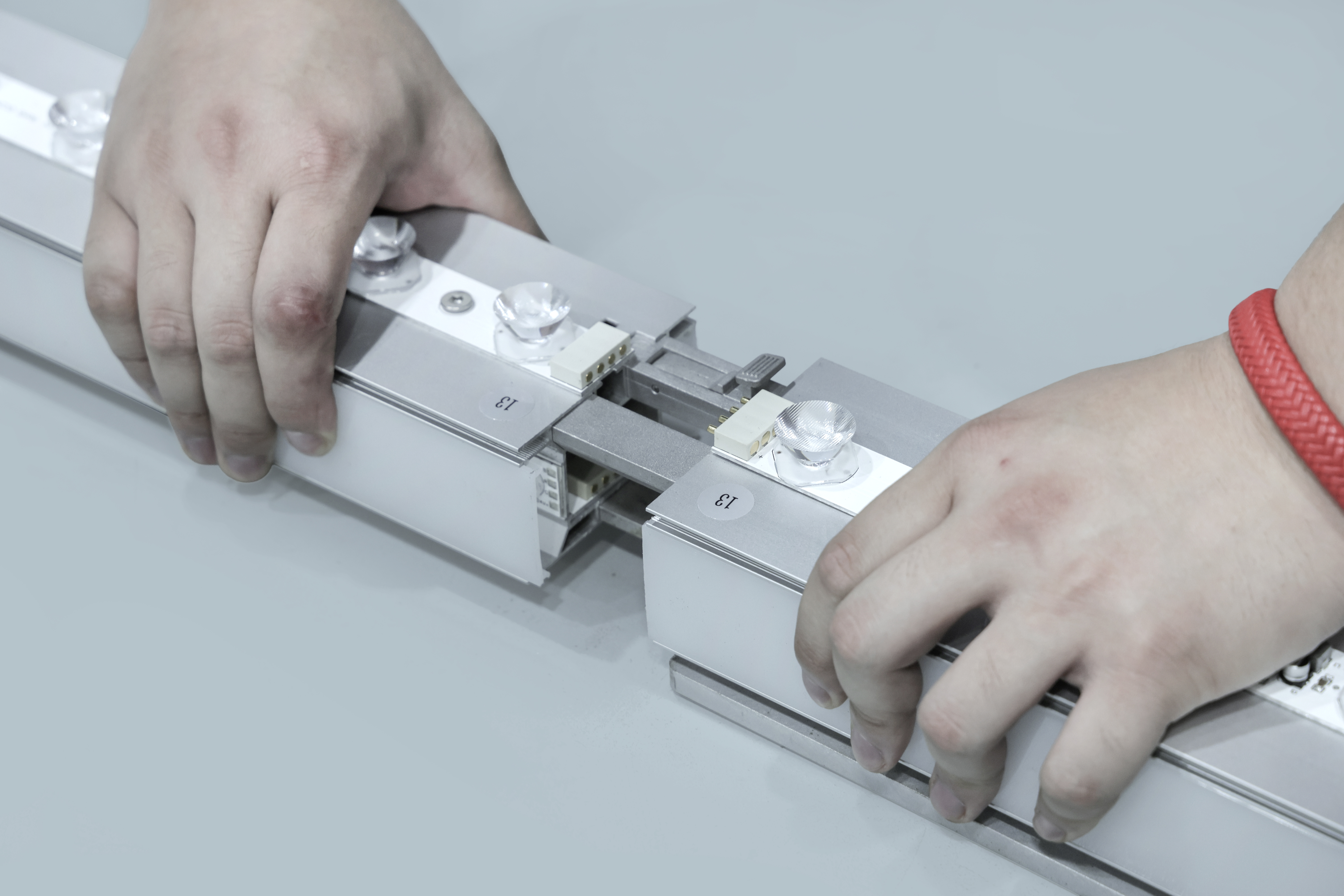

The aluminum sections use an integrated push-to-lock connection system. Installers connect the modules by pushing them into position and press the release mechanism when dismantling the frame.

No separate screws or installation tools are required, reducing setup steps and helping event teams complete installations more efficiently.

Dynamic Double-Sided RGB Edge Lighting

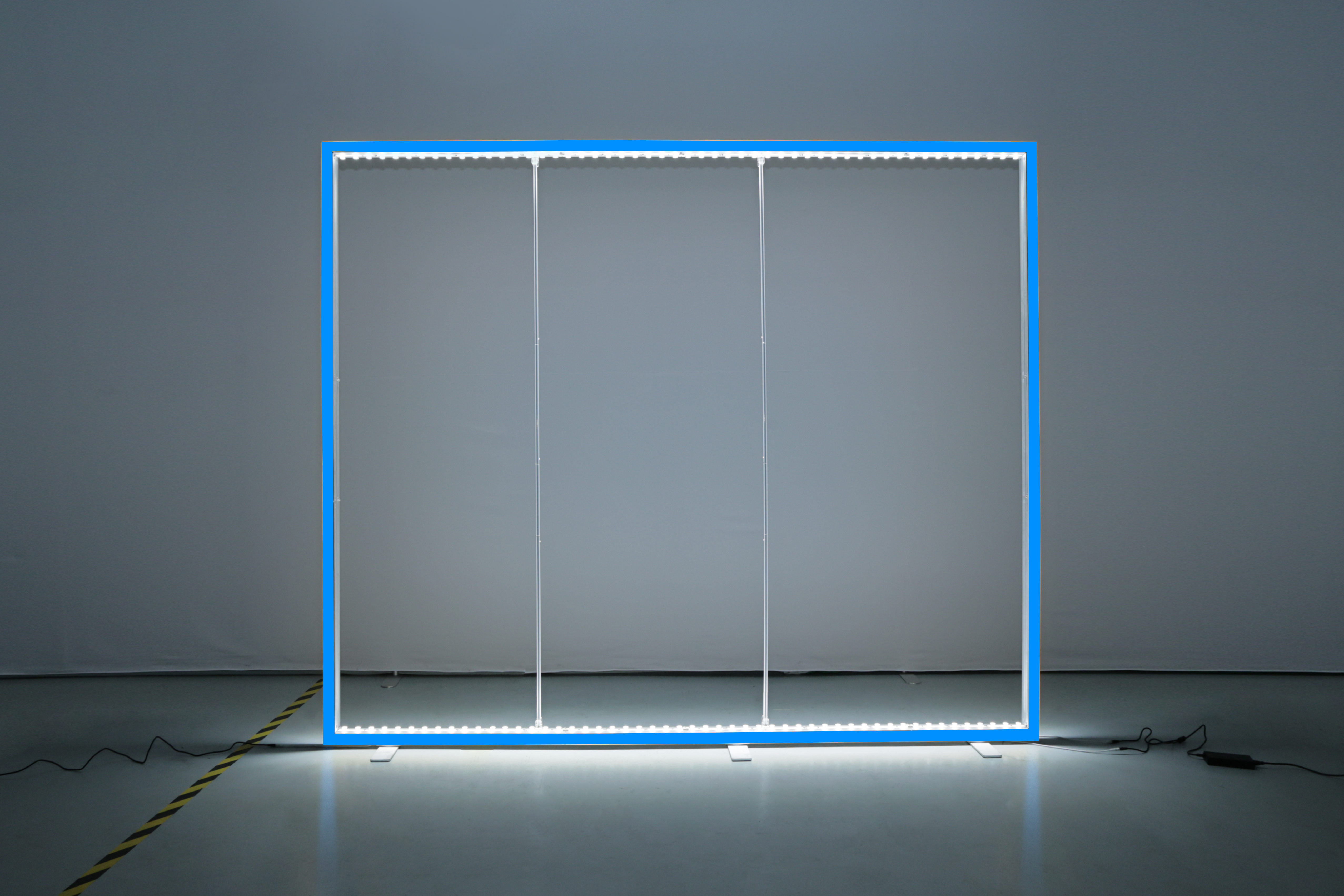

RGB LED strips are installed on both display sides to produce a visible color-changing effect from different viewing directions.

The frame can support white light, static brand colors and dynamic lighting effects, making it suitable for high-traffic environments where a standard printed backdrop may not attract enough attention.

Modular Sizes from 1.5 to 3 Metres Wide

Standardized aluminum sections can be combined into multiple frame sizes. Buyers can select widths of 1500, 2000, 2500 or 3000 mm and heights of 2000, 2250 or 2500 mm.

This modular system allows distributors and rental companies to serve different booth spaces without relying on one fixed display size.

Replaceable Single- or Double-Sided SEG Graphics

The frame accepts BL16 silicone edge fabric graphics with a B1 fire-resistant rating. Graphics may be printed on one or both sides according to the display location.

Double-sided graphics are recommended for exhibition aisles, shopping malls and open event spaces where visitors approach from multiple directions.

Portable Protection for Repeated Events

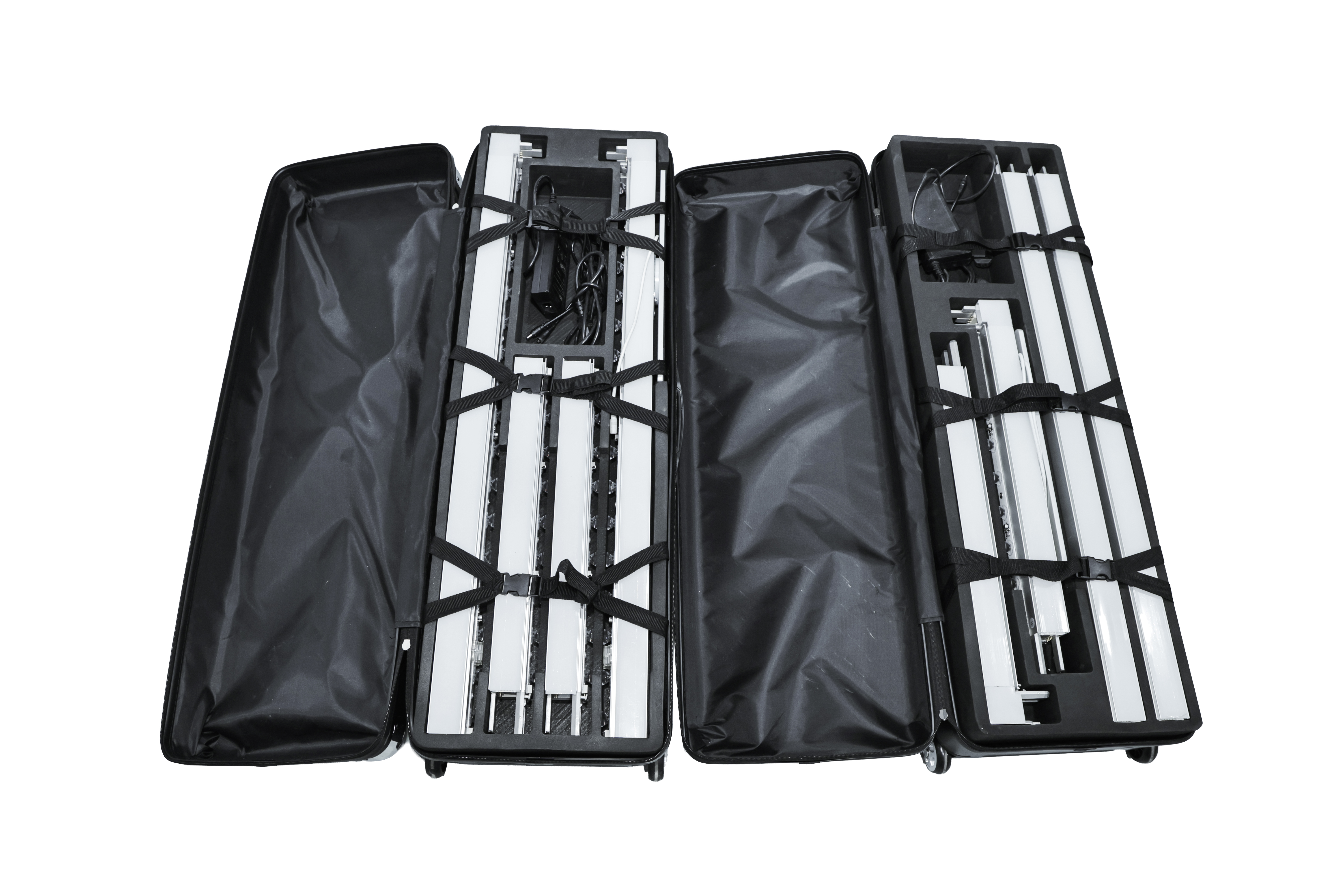

Frame modules, lighting components and accessories are packed in fitted EVA wheeled hard cases. The rigid protective structure helps reduce impact damage during transport, while built-in wheels simplify movement between storage, vehicles and event halls.

For the 3000 × 2500 mm reference configuration, the complete system weighs approximately 41 kg including packaging.

How Does the Tool-Free RGB Connection System Work?

The Large Format RGB Flash Frame uses an integrated structural and electrical connection design.

Straight and Corner Connectors

Precision straight connectors and corner components join the aluminum profiles without external screws, creating a stable rectangular display structure.

Spring-Loaded Electrical Contacts

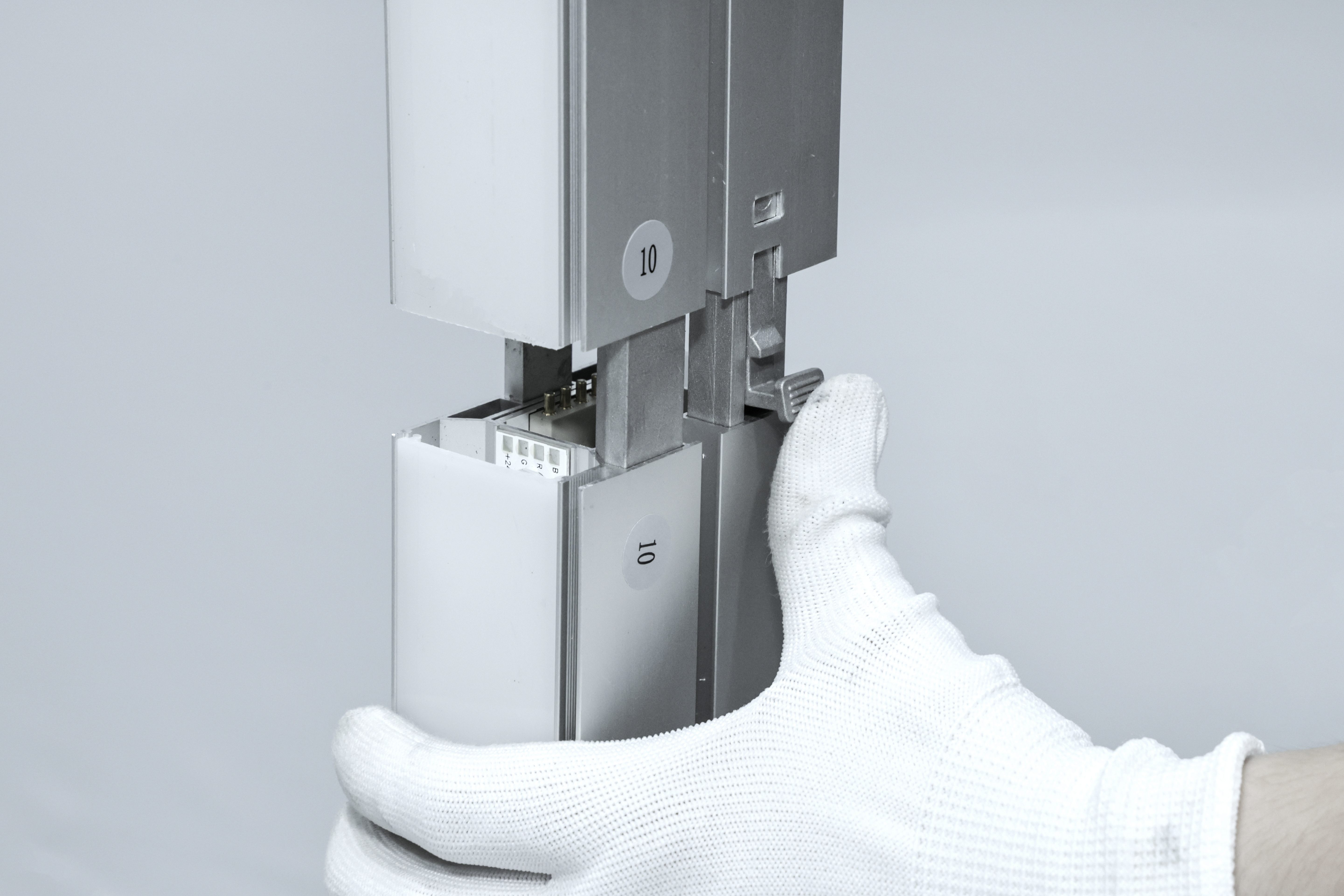

Internal compression-spring conductive contacts automatically connect the RGB LED circuit when two frame sections are joined. This design reduces exposed wiring and eliminates the need to reconnect individual lighting cables between every module.

Snap-On PC Diffusers

The PC diffusers align with the straight and corner sections to create a more continuous lighting appearance around the frame. They can also be removed for easier maintenance or LED replacement.

Silicone Edge Graphic Channels

After the structure is assembled, the silicone edge of the printed fabric is inserted into the frame channel. The graphic remains tensioned and can be changed without replacing the aluminum hardware.

Large Format RGB Flash Frame Sizes

Custom configurations can be discussed according to project quantity, transport requirements and installation environment.

Technical Specifications

Final graphic dimensions should follow the artwork template supplied for the selected frame size.

How to Assemble the RGB Flash Frame

1. Remove the labeled aluminum modules from the wheeled cases.

2. Connect the lower horizontal frame sections.

3. Attach the vertical profiles using the push-to-lock connectors.

4. Connect the upper horizontal sections and support poles.

5. Secure the feet and complete the power connection.

6. Insert the silicone edges of the fabric graphic into the frame channels.

7. Power on the frame and select the required RGB lighting effect.

The modular design reduces loose hardware and simplifies both installation and packing.

Large RGB Display Solutions for Trade Shows and Retail

Trade Show Backwalls

Use the Large Format RGB Flash Frame as a freestanding exhibition backwall that remains visible across busy aisles. Dynamic colors can reinforce a campaign theme or highlight a new product launch.

Retail and Pop-Up Displays

Replaceable SEG graphics make the system suitable for seasonal campaigns, product promotions and temporary retail installations.

Brand Activations and Events

Color-changing lighting creates a more engaging background for presentations, launches, photo areas and experiential marketing events.

Showrooms and Shopping Malls

The clean aluminum structure and tensioned graphics provide a professional display surface for longer-term indoor promotion.

Rental Display Programs

Reusable modules, interchangeable graphics and protective wheeled cases make the frame suitable for exhibition contractors and rental companies managing repeated installations.

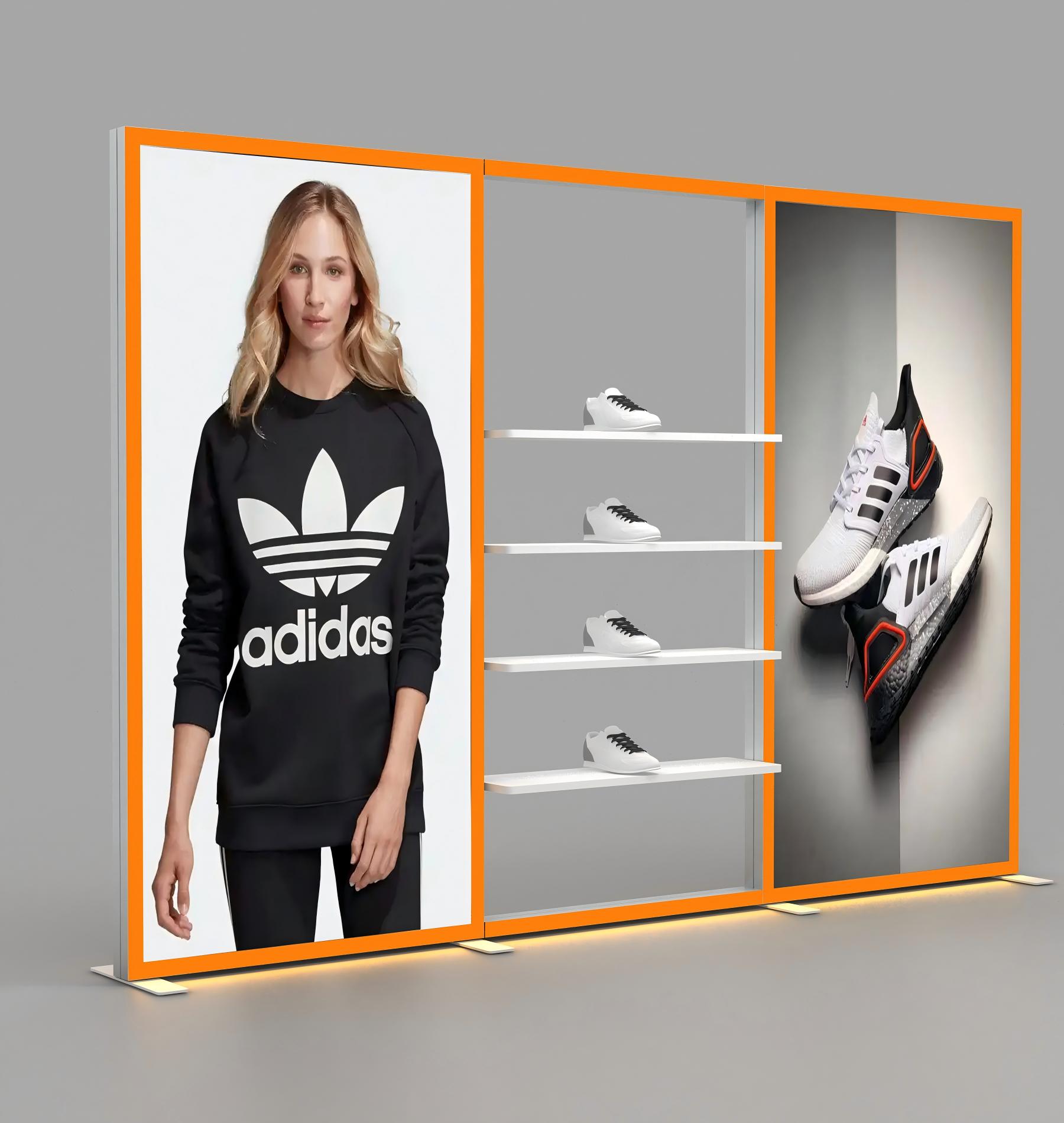

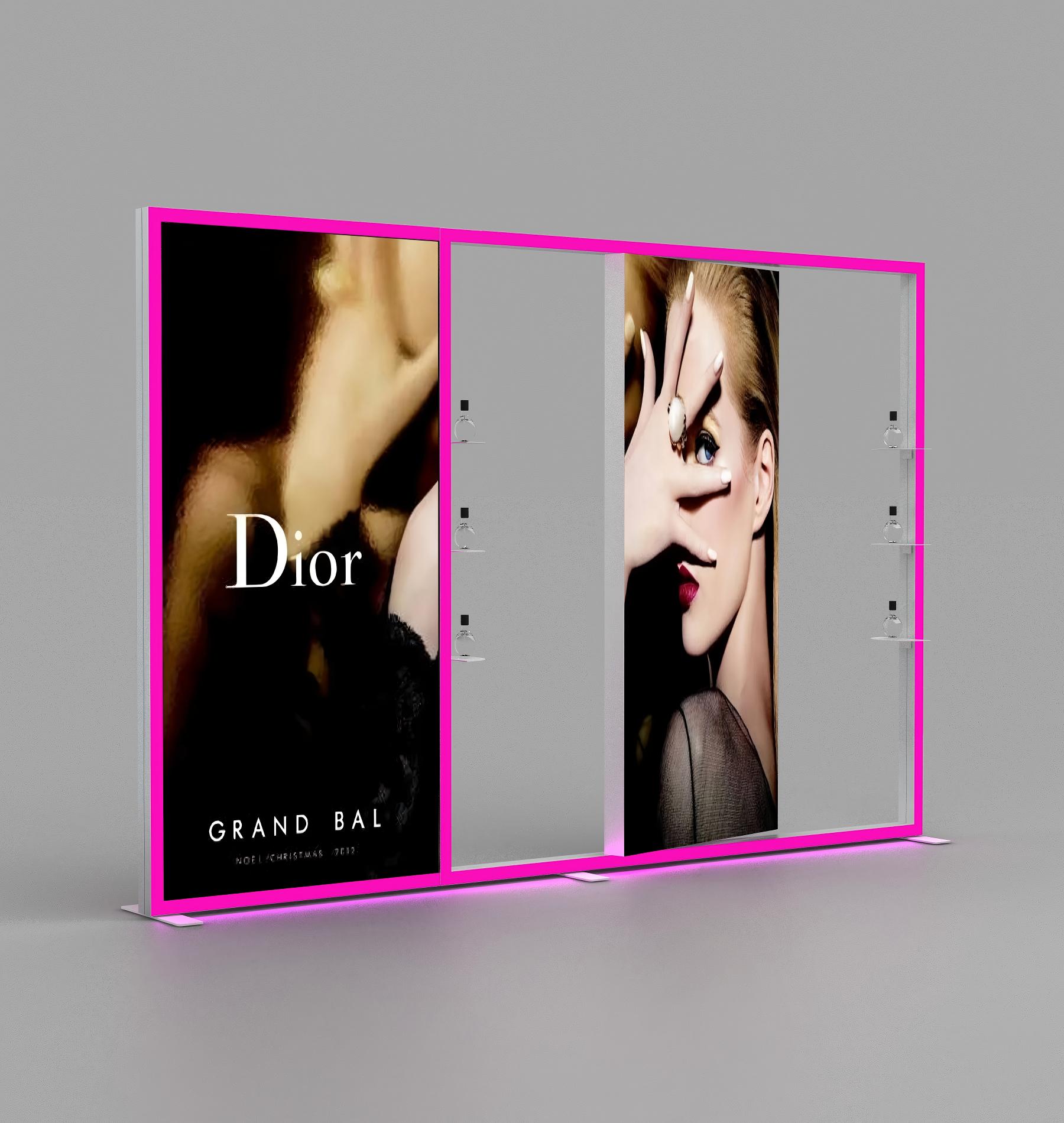

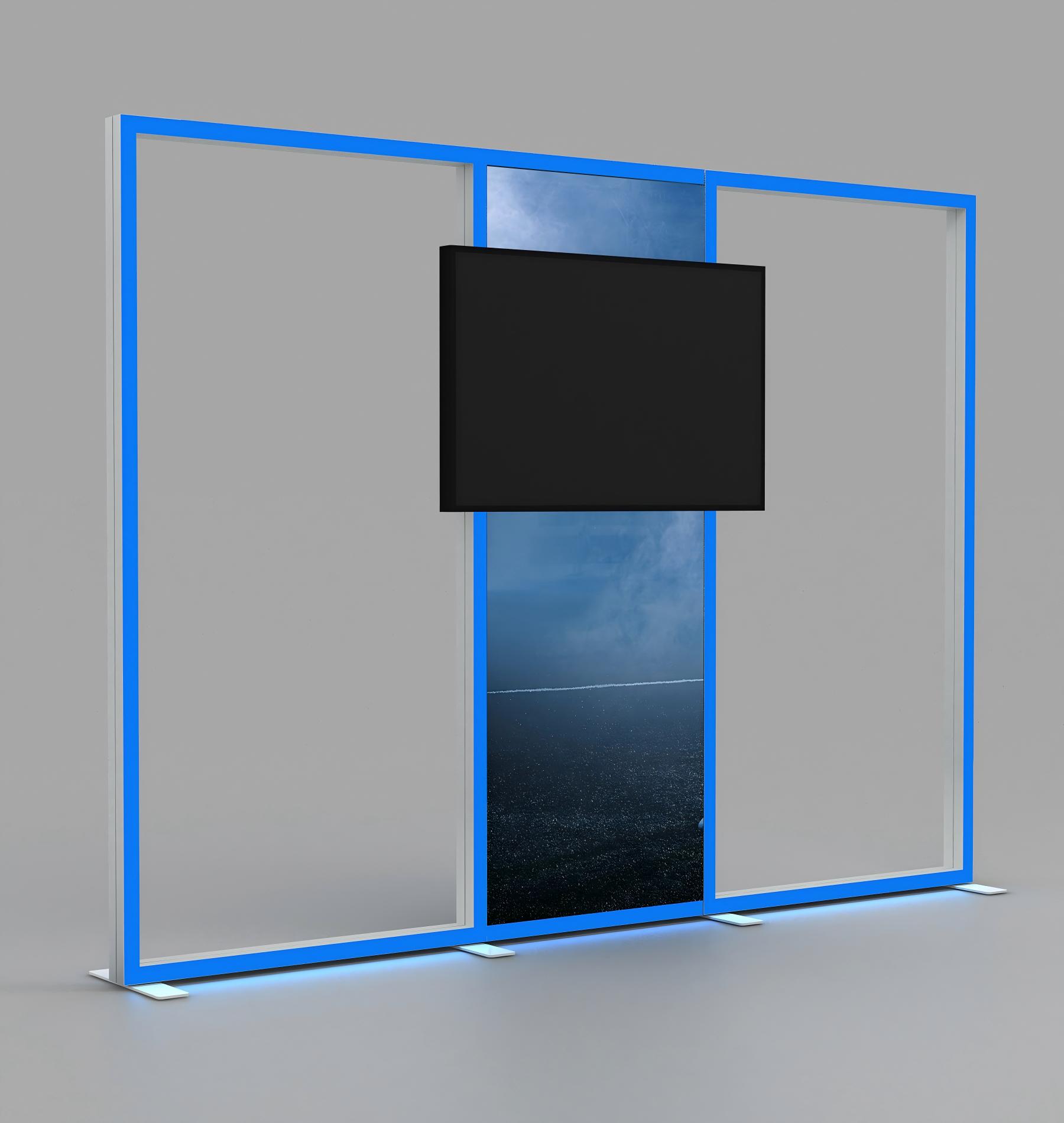

Optional configurations may incorporate monitor mounts, display shelves or additional frame sections. Accessory compatibility and load requirements should be confirmed before production.

Large RGB Flash Frame vs Conventional Display Frame

Designed for Distributors, Dealers and Exhibition Contractors

The Large Format RGB Flash Frame gives display distributors a differentiated product beyond standard static SEG frames.

For distributors and dealers, it offers:

• A recognizable RGB product category

• Multiple standard sizes for different markets

• Replaceable graphics for repeat business

• OEM/ODM project opportunities

• A premium visual feature that supports stronger product positioning

For exhibition contractors and rental companies, it offers:

• Faster setup and dismantling

• Reusable modular hardware

• Reduced loose parts

• Protective transport cases

• Flexible use across different booth sizes and events

Explore the complete EXPOMAX RGB Frame System.

RGB Flash Frame or RGB Flash Lightbox: Which Should You Choose?

Choose the Large Format RGB Flash Frame when dynamic perimeter lighting, modular sizing and portable event use are the main priorities.

Choose the RGB Flash Lightbox EM-22AB when the project requires both:

• Dynamic RGB lighting around the frame

• Internal white LED strips that fully illuminate the SEG graphics

The EM-22AB is a hybrid RGB and backlit lightbox, while the Large Format RGB Flash Frame focuses on RGB edge lighting and modular large-format presentation.

OEM/ODM RGB Display Frame Manufacturing

EXPOMAX manufactures portable exhibition and display systems for distributors, dealers, rental companies and display solution providers.

Contact our team to discuss:

• Standard or project-specific frame sizes

• Single- or double-sided graphics

• Graphic printing requirements

• Voltage and plug requirements

• Samples and volume orders

• Replacement components

• OEM/ODM requirements

• Packaging and shipping arrangements

Request a Large Format RGB Flash Frame Quote

Add dynamic RGB lighting to your next exhibition, retail or event display project.

Send EXPOMAX your required size, quantity, graphic configuration and delivery destination. Our team will help you confirm the correct modular configuration, packaging and quotation.

[REQUEST A QUOTE]

Large Format RGB Flash Frame 3000x2500 Instruction.pdf

Frequently Asked Questions About Large RGB Flash Frames

What is an RGB Flash Frame?

An RGB Flash Frame is an aluminum SEG display frame with integrated color-changing RGB LED lighting. It combines reusable hardware, replaceable fabric graphics and dynamic lighting effects for exhibitions, retail displays and events.

Is this product a fully backlit SEG lightbox?

The Large Format RGB Flash Frame primarily uses RGB LED edge lighting to create dynamic lighting around the display. For full-surface white backlighting combined with an RGB frame, select the EM-22AB RGB Flash Lightbox.

What sizes are available?

Standard widths are 1500, 2000, 2500 and 3000 mm. Each width is available in 2000, 2250 or 2500 mm heights.

Does installation require tools?

No. The frame uses push-to-lock connectors and integrated electrical contacts, so the main structure can be assembled without tools or separate screws.

How long does installation take?

The familiarized installation process can be completed in approximately three minutes. Actual setup time depends on the selected frame size, graphic configuration and installer experience.

Can the RGB Flash Frame display graphics on both sides?

Yes. It supports single- or double-sided SEG fabric graphics. Double-sided printing is recommended for open exhibition booths and retail spaces with traffic from multiple directions.

Can the fabric graphics be replaced?

Yes. The SEG graphics can be removed and replaced while the aluminum frame and lighting system are reused for future campaigns.

Is the graphic material fire resistant?

The standard BL16 SEG fabric listed for this system has a B1 fire-resistant rating.

How is the frame transported?

The frame sections and electrical components are stored in fitted EVA hard-plastic cases with wheels for easier transport and repeated event use.

Who is this product designed for?

It is designed for exhibition display distributors, trade show contractors, rental companies, retail display providers, event agencies and brands requiring a reusable large-format RGB display wall.

What information is required for a quotation?

Please provide the required frame size, order quantity, single- or double-sided graphic requirement, delivery country, voltage or plug requirement and any OEM/ODM needs.
